Name: SBIG Scientific CMOS Imaging Camera Monochrome Camera with Internal Shutter
SKU: 265360

Product Details ＋

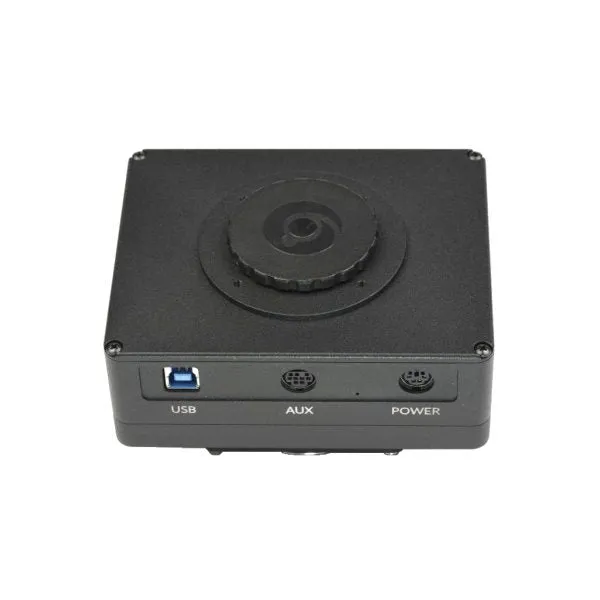

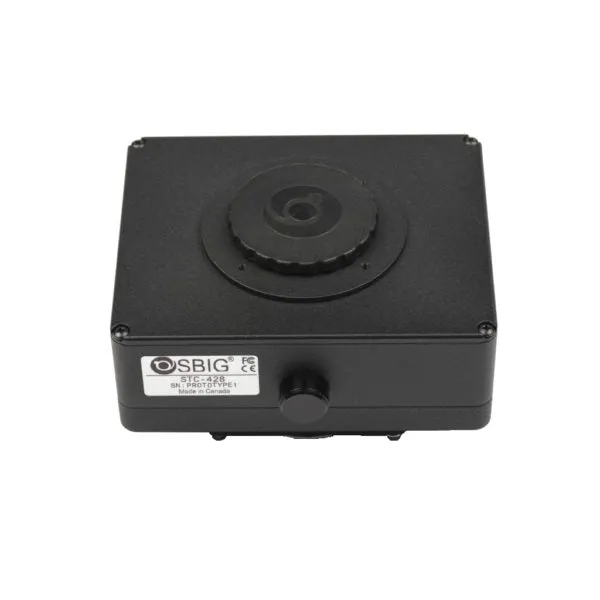

The STC-428M Scientific CMOS imaging monochrome camera provides a high sensitivity, low noise 7-megapixel imaging experience in a compact package. This variation of this camera includes an internal mechanical shutter for taking dark frames.

The new STC-428-M scientific CMOS camera represents a major improvement over CCD technology. Compared with previous CCD models, the STC-428-M features higher sensitivity (78% QE versus 56%), significantly lower read noise (2.5 e- versus 9.3 e-), and 20X faster readout.

While a single exposure on the IMX428 sensor can equal CCD dynamic range, the combination of fast readout and very low read noise allows for stacking many shorter to produce a greater dynamic range than previously possible. The built-in StackPro™ capability can automatically divide your exposure into up to 16 shorter sub-exposures, and stack them inside the camera prior to download. This increases dynamic range without imposing greater processing requirements on the host computer.

Our SmartCooling™ active regulation maintains the sensor temperature to within 0.1ºC, and minimizes fan speed based on heat sink temperature for longer life and quieter operation.

Sensor Specifications:

SONY IMX428 CMOS imaging sensor
3208 x 2200 pixels / 7.1 megapixel
4.5 micron pixels
17.6 mm diagonal
Peak QE 78%
Typical QE:
- Red (635-700 nm) ~ 63%
- Green (520-560 nm) ~ 78%
- Blue (450-490 nm) ~ 75%
12-bit A/D conversion with low-gain and high-gain modes
Very low read noise ~ 2.5e-
Very low dark current 0.1 e-/pixel/sec typical @ -5C
80 dB dynamic range

The STC-428-M supports several optional gain modes:

Low Gain
- 12-bit data
- Gain 5.5 e-/ADU
- Full Well ~ 22,500 e-
- Read Noise ~5 e-
Medium Gain
- 12-bit data
- Gain 2.45 e-/ADU
- Full Well ~ 10,000 e-
- Read Noise ~ 2.3 e-
High Gain
- 12-bit data
- Gain 1.2 e-/ADU
- Full Well ~ 5,000 e-
- Read Noise ~ 1.9 e-
