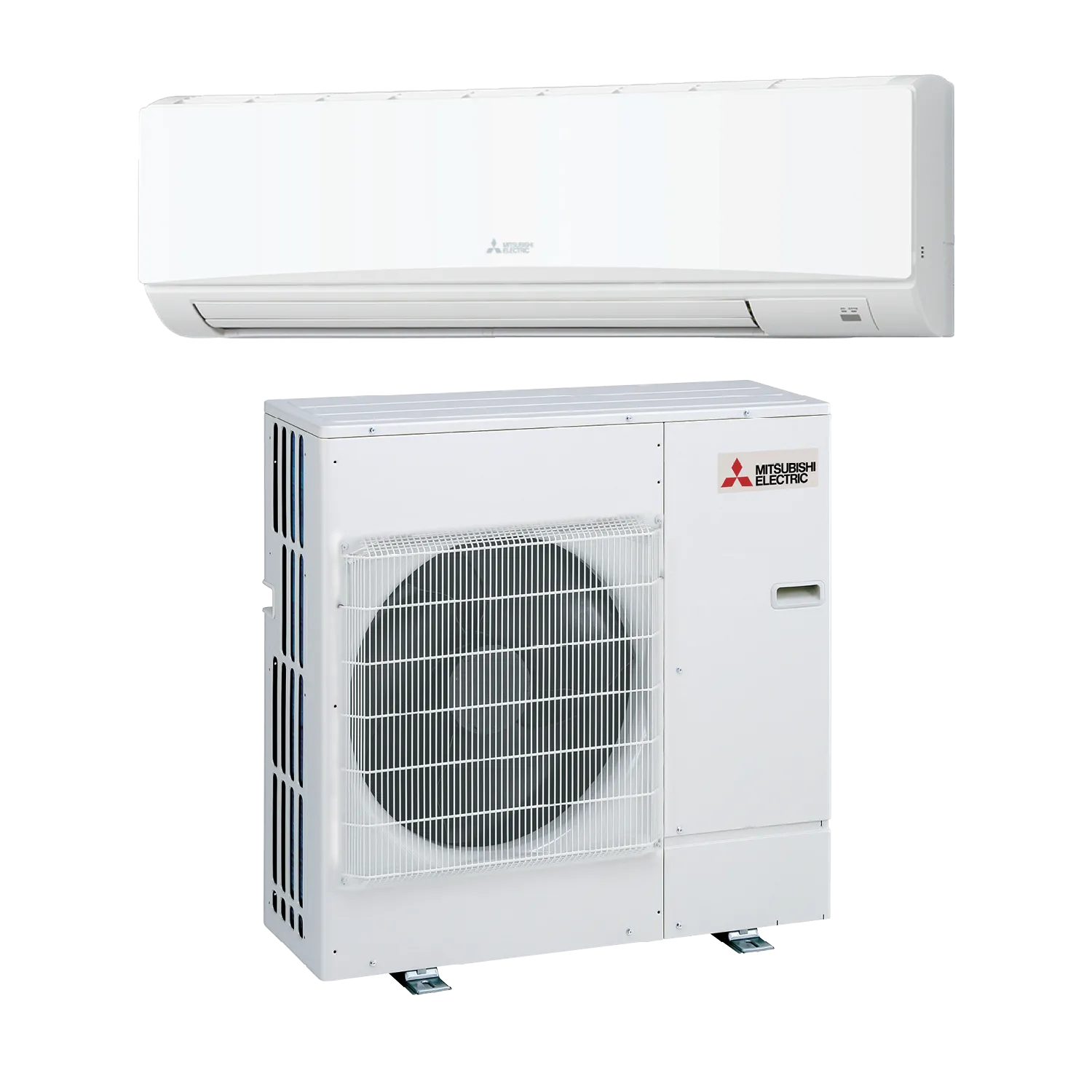

Mitsubishi's commercial 30,000 BTU wall mounted single zone heat pump (PKA-A30KA7 & PUZ-A30NHA7(-BS)) is part of Mitsubishi's P-series. This single zone unit is perfect for server rooms, daycares, churches, small offices, and other business and commercial applications.
Mitsubishi Electric created the P-series systems for commercial applications. P-series systems like the PKA-A30KA7 & PUZ-A30NHA7(-BS) are built with more durable materials, meant to survive through dirtier, high trafficked environments.
This 30,000 BTU wall mounted single zone heat pump is super efficient and built to make sense for your business. It provides low ambient cooling down to 0 degrees Fahrenheit, and can cool continuously for 24 hours in the harshest conditions.
For proper installation, plan for:
- Line Set - When hooking up the indoor (PKA-A30KA7) to the outdoor (PUZ-A30NHA7(-BS)) you'll need a line-set kit. Our line-sets kits come in different lengths; however, you can cut all the materials to fit your specifications.
- Disconnect Box & Electrical Whip Kit - The comes in each installation kit. It provides a safe and simple way to connect your outdoor condenser to your homes' electrical panel.
- Outdoor Condenser Plastic Pad (Optional) - This provides an even surface, free of debris, on which to place your outdoor condenser. It also comes with snow-risers to provide separation from the ground.
- Outdoor Condenser Bracket (Optional) - This provides an even surface, off the ground, on which to place your outdoor condenser. This bracket can handle up to 400 lbs and is great way to ground your outdoor unit system.
Connectable Accessories
- kumo touch™ Interface -
- Thermostat Interface -
- Remote Humidity & Temperature Sensor - PAC-USWHS003-TH-1
- kumo touch™ RedLINK™ Wireless Controller -
General Information
- P-Series
- Cooling & Heating
- No
- 30,000 BTU
Package Includes
- Indoor Unit: PKA-A30KA7
Performance
- 30,000 BTU
- 34,000 BTU
- 30,000 BTU
- 19.8
- Energy Star Certified: No
- 5 F
- 0 F
- Heating Capacity at 5 F: 21,000 BTU
- Up to 2000 sq ft
- Up to 1000 sq ft
Outdoor Unit Specs
- Noise Level: Cooling: 47 decibals
- Noise Level: Heating: 48 decibals
- Size W:: 37-13/32
- Size: H: 37-1/8"
- Size: D: 13"
- Weight: 153 lbs
- Electrical: 25 AMP
Indoor Unit Specs
- Noise Level: Cooling: 39-45 decibals
- Noise Level: Heating: 39-45 decibals
- Size W:: 46-1/16"
- Size: H: 14-3/8"
- Size: D: 11-5/8"
- Weight: 46 lbs
- External Finish Color: White Munsell
Certifications
- Yes
