Product Details
＋
Logitech Rally System ConferenceCam 960-001237
(2 Years Manufacture Local Warranty In Singapore) -Promo Price While Stock Last
Note: This is the full set that includes:
✔️ Rally Conference camera
✔️ Rally Speaker x 1
✔️ Rally Microphone pod x 1
✔️ Display Hub
✔️ Table Hub
Premium PTZ camera with Ultra-HD imaging system and automatic camera control
- RightSense technology automates a better user experience
- Advanced optics frame every participant with amazing clarity
- Sleek industrial design for any professional meeting space
- Modular style allows for additional speakers/ microphones when required
PEERLESS PERFORMANCE. EXCEPTIONAL VERSATILITY
STUDIO-QUALITY VIDEO
With an Ultra-HD imaging system, Rally Camera delivers brilliantly sharp video, outstanding colour, and exceptional optical accuracy at resolutions up to 4K. Logitech RightLight technology optimises light balance to emphasise faces and render natural-looking skin tones, even in dim or backlit conditions.
SEE EVERYONE, PERFECTLY FRAMED
Logitech RightSight camera control automatically moves and adjusts the lens to comfortably frame meeting participants in rooms of all shapes and sizes.
Future Availability: RightSight will be enabled by a software download, with initial support for Windows 10.
DIMENSIONS
Rally Camera
- Height x Width x Depth:
- 182.5 mm x 152 mm x 152 mm
Rally Speaker
- Height x Width x Depth:
- 103 mm x 449 mm x 80 mm
Rally Mic Pod
- Height x Width x Depth:
- 21 mm x 102 mm x 102 mm
Rally Display Hub
- Height x Width x Depth:
- 40 mm x 206 mm x 179 mm
Rally Table Hub
- Height x Width x Depth:
- 40 mm x 176 mm x 138 mm
SYSTEM REQUIREMENTS
Operating Systems
- Windows® 7, Windows 8.1 or Windows 10
- macOS 10.10 or higher
- Chrome OS
Resolutions higher than 1080p
- Windows 8.1 or higher or macOS 10.10 or higher
- USB 3.0 port and Type C cable
- Compatible software
Additional Software
- RightSight automatic camera control
TECHNICAL SPECIFICATIONS

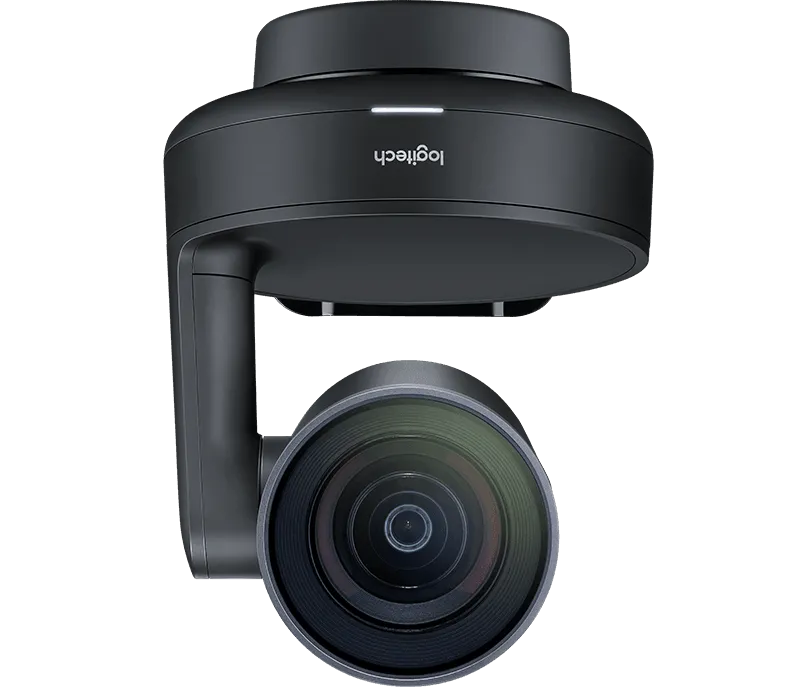

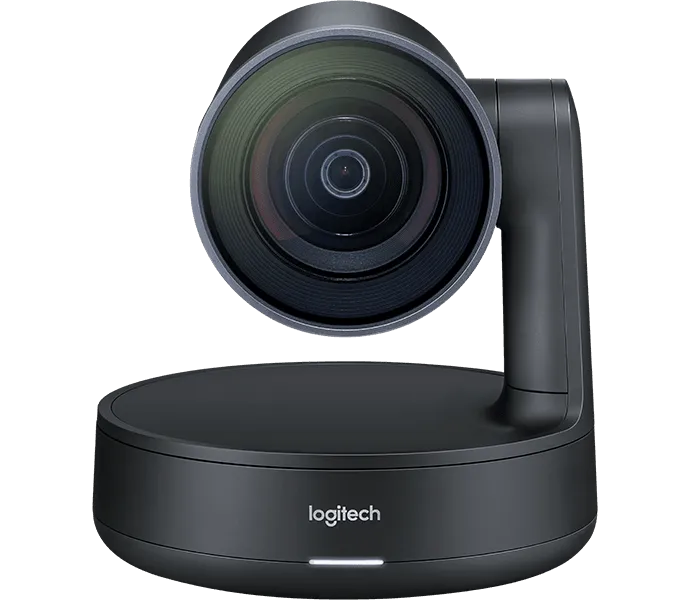

CAMERA
- Ultra-HD imaging system supports:
- 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- 1080p, 720p at 30fps and 60 fps
- Smooth motorized pan, tilt and zoom
- Pan: ±90°
- Tilt: 50° / -90°
- 15x HD zoom
- 90° field of view
- Autofocus
- 3 camera presets
- Kensington security slot
- Video mute/unmute LED indicator
- Standard tripod thread
- Lens parks at -90° in sleep mode for assured privacy
RALLY MIC POD
- Pickup range: 4.5 m diameter
Four omnidirectional microphones forming eight acoustic beams
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Background noise suppression
Mute button with LED status indicator
Captive 2.95 m 12-pin cable
Daisy chain up to 7 Rally Mic Pods
Frequency response: 90 Hz – 16 kHz
Sensitivity: >-27 dB /-1 dB @ 1 Pa
Microphone data rate: 48 kHz
Recommended # of participants:
Rally (one Mic Pod): 10
Additional participants per Mic Pod: 6
Recommended participants for Rally with 7 Mic Pods: 46

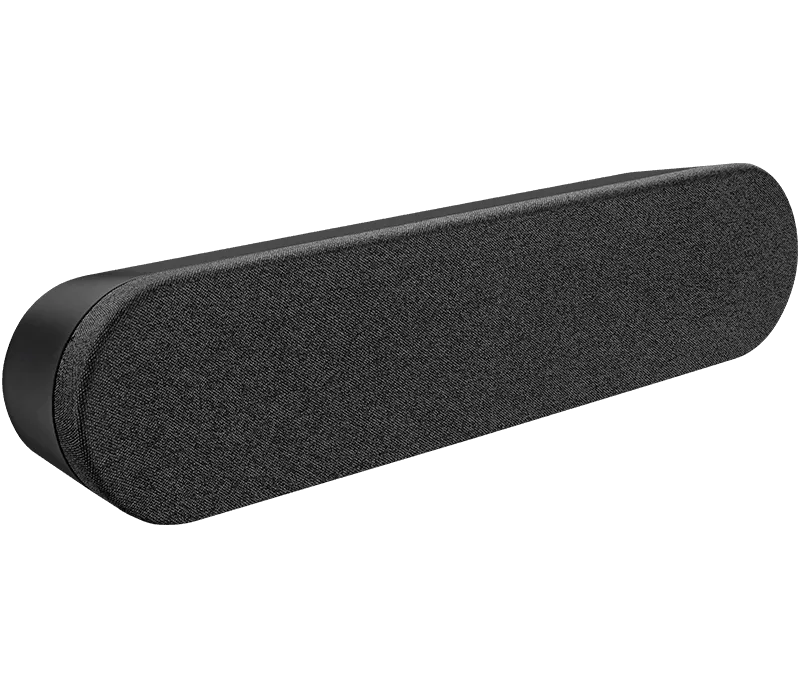

RALLY SPEAKER
- High-performance 76 mm driver with rare-earth magnet
Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
Mini XLR cable connects to Rally Display Hub for both signal and power
Speaker volume 95 dB SPL @1 W, 100 dB SPL @7.5 W, both /-2 dB at ½ meter
Sensitivity: 95 /-2 dB SPL at ½ meter
Distortion: 200 Hz–300 Hz < 2.5%, 300 Hz–10 kHz < 1%@7.5 W
Speaker sampling rate: 48 kHz

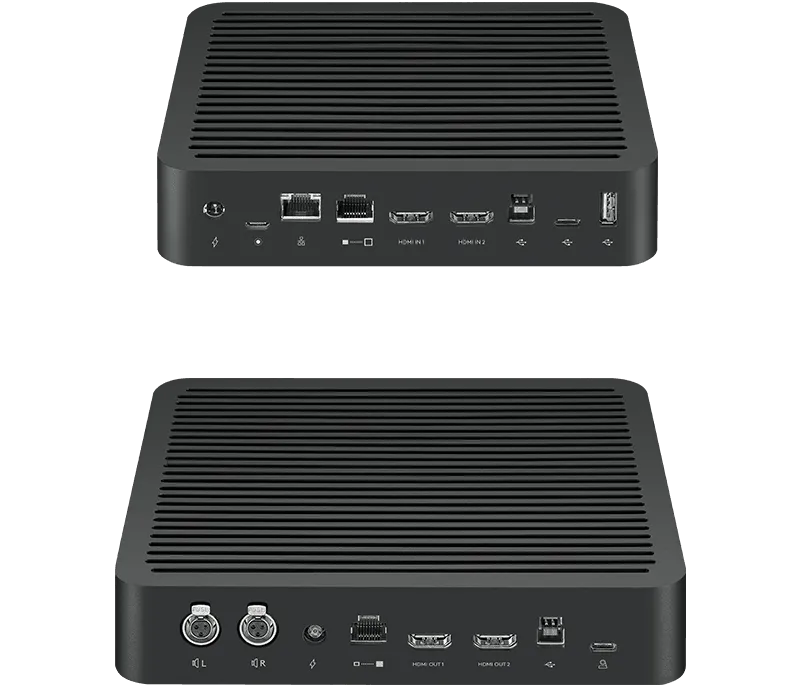

RALLY TABLE HUB
- Single CAT6A cable connection to Rally Display Hub ( 5 m cable included, supports customer-supplied cables up to 50 m)
Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8ms
12 Pin connector for Rally Mic Pod
HDMI Type A passthrough to Display Hub (x2)
USB Type C
USB Type A (reserved for future capability)
USB Type B (connects to meeting room computer)
RJ45 (reserved for future capability)
Power input
RALLY DISPLAY HUB
- HDMI Type A (x2) (connects to displays)
USB C (connects to Rally Camera)
USB Type B (connects to meeting room computer)
RJ45 (connects to Table Hub)
Mini XLR (x2)
Powers one or two Rally Speakers
Power input

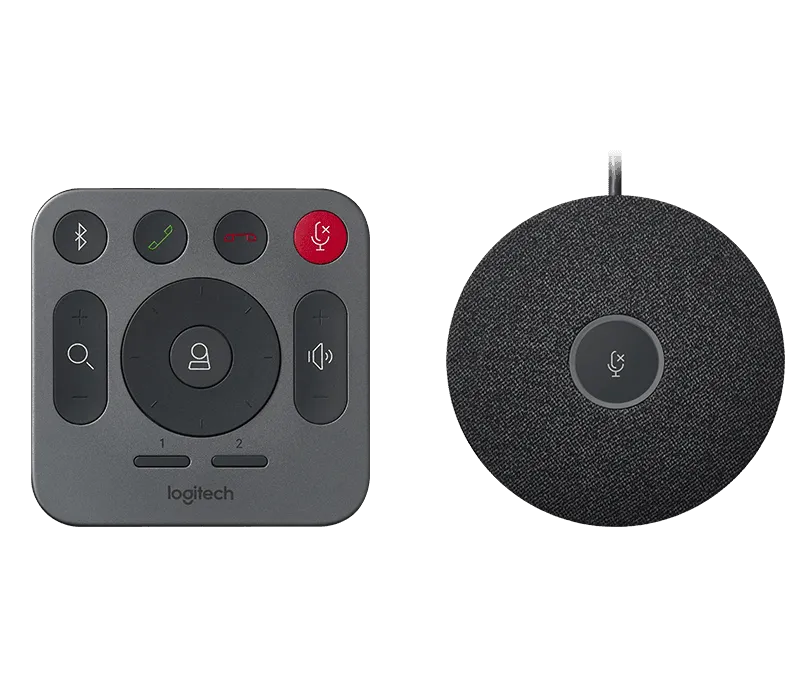

REMOTE CONTROL
- RF remote control (line of sight not required)
- CR2032 batteries (included)
RIGHTSENSE™ TECHNOLOGIES
- RightLight™ with Wide Dynamic Range (WDR)
- RightSight™ automatic camera control
CABLES / POWER
- Camera to Display Hub
2 m USB 3.1 Type C to USB Type C 3.1
- Conference Room Computer to Display or Table Hub
2 m USB 3.1 Type A to USB Type B
- Display Hub to Table Hub
5 m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m
- Display Hub to Speaker (x2)
2.95 m Mini XLR (supports customer-supplied extension cables up to 3 m
- Conference Room Computer to Displays (x2)
2 m HDMI A
- Mic Pod
2.95 m: Hardwired with 12 pin connector
- Power Outlets to Power Supplies (x2)
1 m
- Power Supplies to Table Hub / Display Hub (x2)
1.5 m
MOUNT
- Invertible wall mount with power splitter bay and cable management
COMPATIBILITY
- Plug-and-play USB connectivity
- Certified for Skype for Business and ready for Teams
- Zoom Certified
- Cisco Compatible
- Compatible with Google Hangouts Meet, BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
AVAILABLE ACCESSORIES
-
Rally Mounting Kit with cable retainers (x2) and mounting brackets for the camera, speakers (x2), and hubs (x2)
Deploy up to 7 Rally Mic Pods for greater audio coverage in larger rooms
Connect 1-3 Rally Mic Pods (or additional hubs) for placement flexibility and under-table cabling
Add a second Rally Speaker for larger rooms
-
PACKAGE CONTENTS
- Logitech Rally
- Rally Camera
- Rally Display Hub
- Rally Table Hub
- Rally Speaker (x1)
- Rally Mic Pod (x1)
- Remote control
- USB Type C to USB Type C
- USB Type A to USB Type B
- CAT6A Ethernet cable
- HDMI Type A (x2)
- A/C cables (x2)
- Power Supplies (x2)
- Documentation
-
WARRANTY INFORMATION
2-Year Limited Hardware Warranty
Part Number
PN: 960-001237
=
PN: 960-001224
