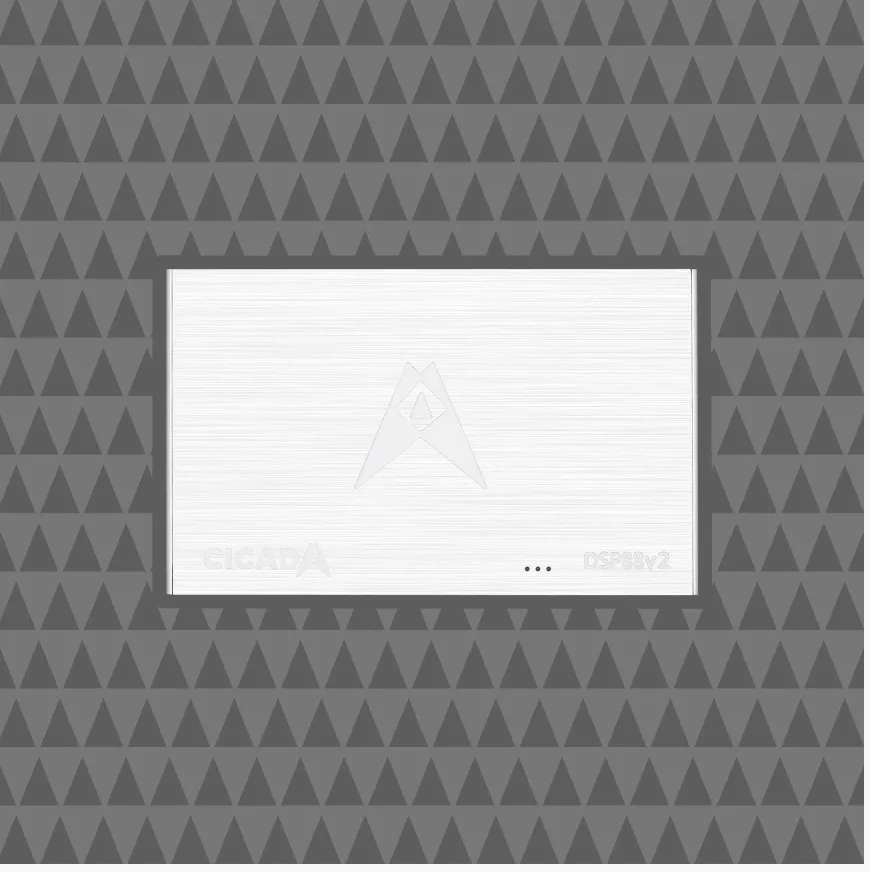

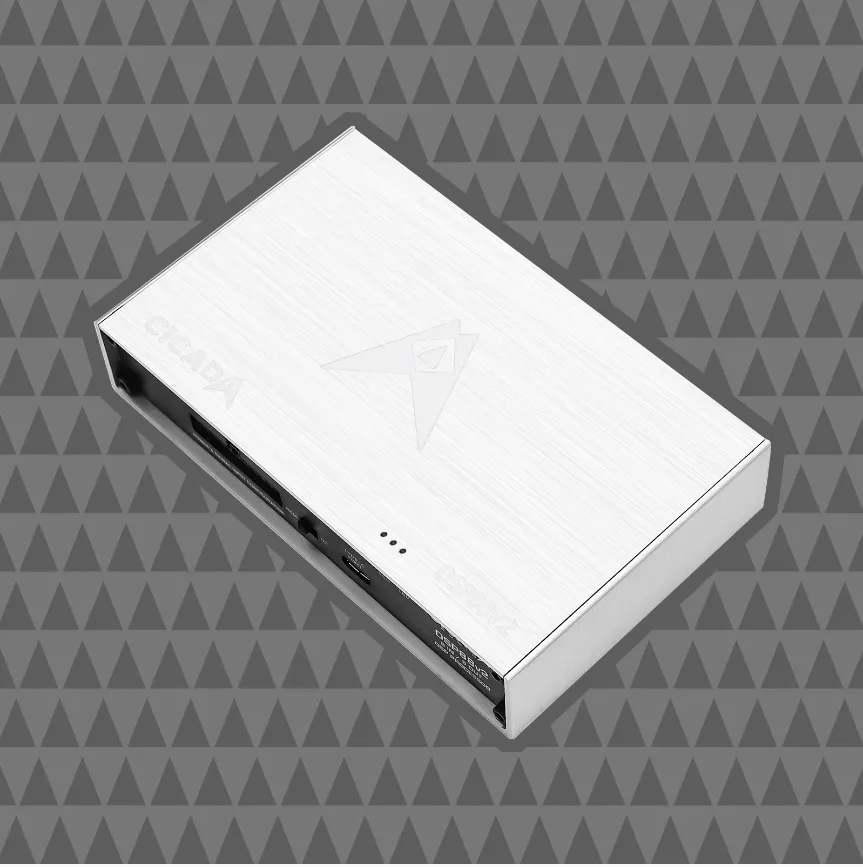

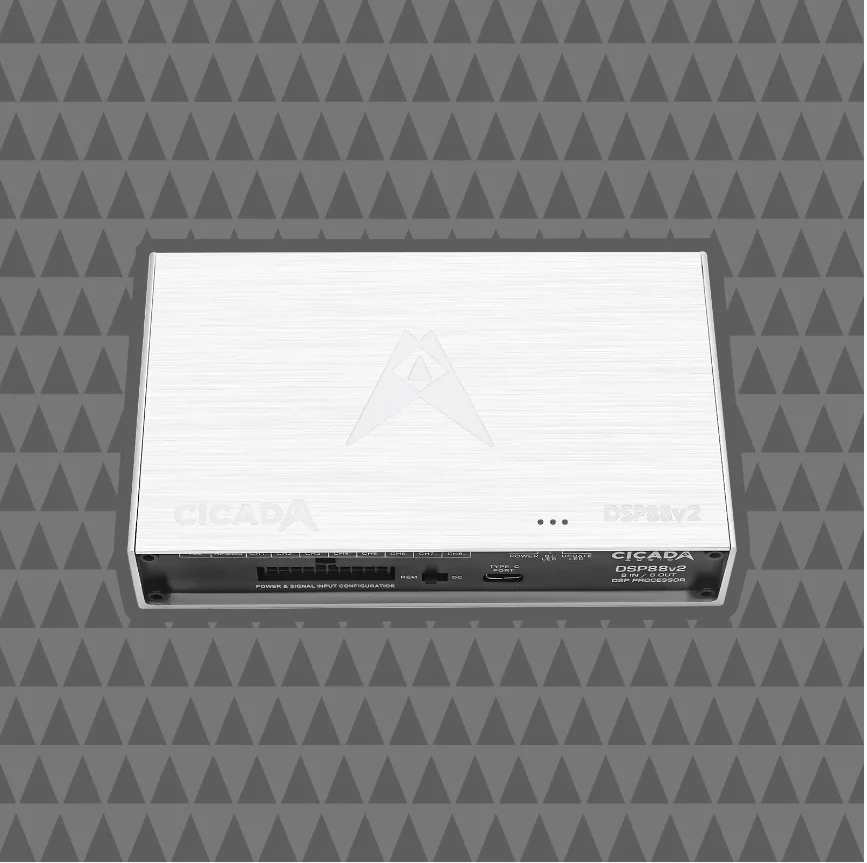

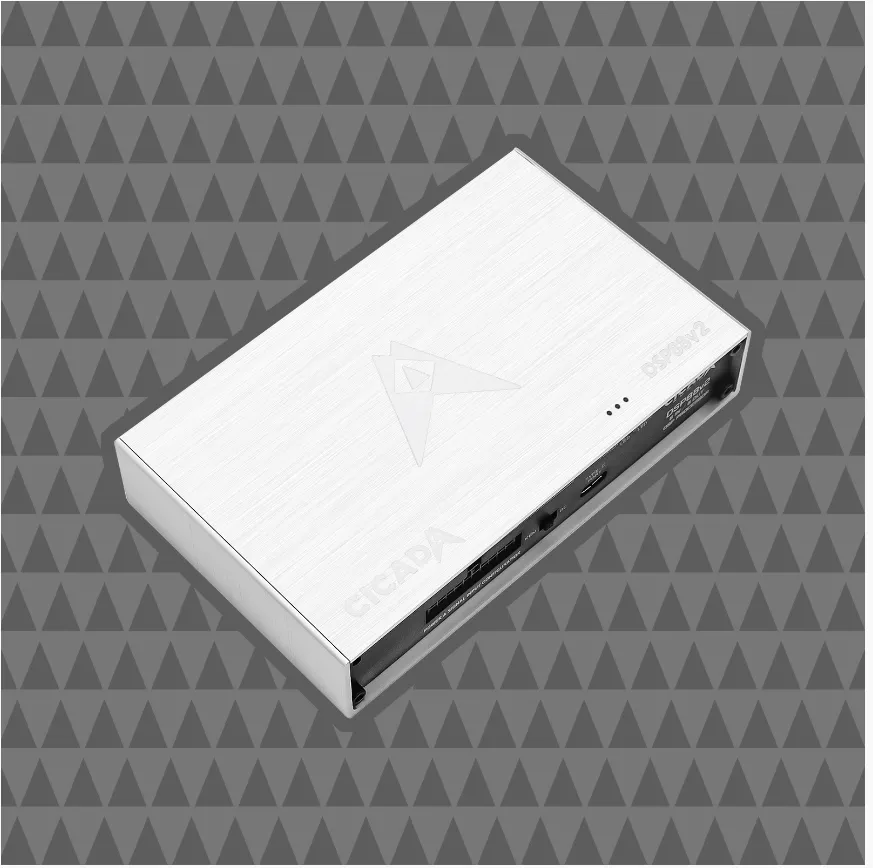

Cicada Audio DSP88V2

Harley Davidson Digital Sound Processor

DSP 8 CHANNEL IN / 8 CHANNEL OUT

This DSP Processor has a great “form factor” as it can sit on the radio or under the left/right bike fairing substructure. Software Phone/Tablet APP and PC APP make this small-size package a WINNER. It easily fits into the fairing of any Harley Bagger 1998 – 2024.

DSP88v2 – 8 CHANNEL DSP PROCESSOR – 8 IN/8 OUT

• Signal Input:  8 High-Low Level Inputs
• Signal Output:  8 RCA Outputs
• Output Impedance: 200 Ohms
• Frequency Response:  20Hz – 20kHz /- 0.5Db
• Input Voltage:  0.02V –  12V
• Input Impedance:  20k Ohms
• Output Voltage: Up to 8V (Unity gain 4V gets UP to 4 V out, 2 V in gets UP to  2 V out, etc.)
• THD N:  <1.0%
• Signal-to-Noise:  >100 dBA (A-weighted)
• Digital Signal Processing (DSP):
  Speed: 147 MIPS    Precision: 32-Bit    Accumulators: 72-bit
• Digital to Analog (DAC):  Precision: 24-Bit
• Dynamic Range: 108 dB
• THD N: -98 dB
• Analog to Digital (ADC):  Precision: 24-Bit
• Dynamic Range: 105 dB
• THD N: -98 dB
• Operating Voltage:  9 – 16 VDC
• Crossover Frequency:  Variable: 20 Hz to 10 kHz
• Crossover Slope:  Selectable Slope: 6/12/18/24/36/48 dB/Octave
• EQ Frequency Controls:  Selectable Q: 0.05 to 20.0
• Dimensions (H x W x D): 1.26″ x 4.04″ x 5.12″ (32 mm x 102.5 mm x 130 mm)

Cicada Audio’s patented Bluetooth digital signal processor allows you to do DSP tuning and signal summing via the app and using the downloadable CA DSP app on your smartphone or tablet.

You can upload saved system settings from one DSP88 and load it into a different DSP88v2.   (Think of the possibilities!)
