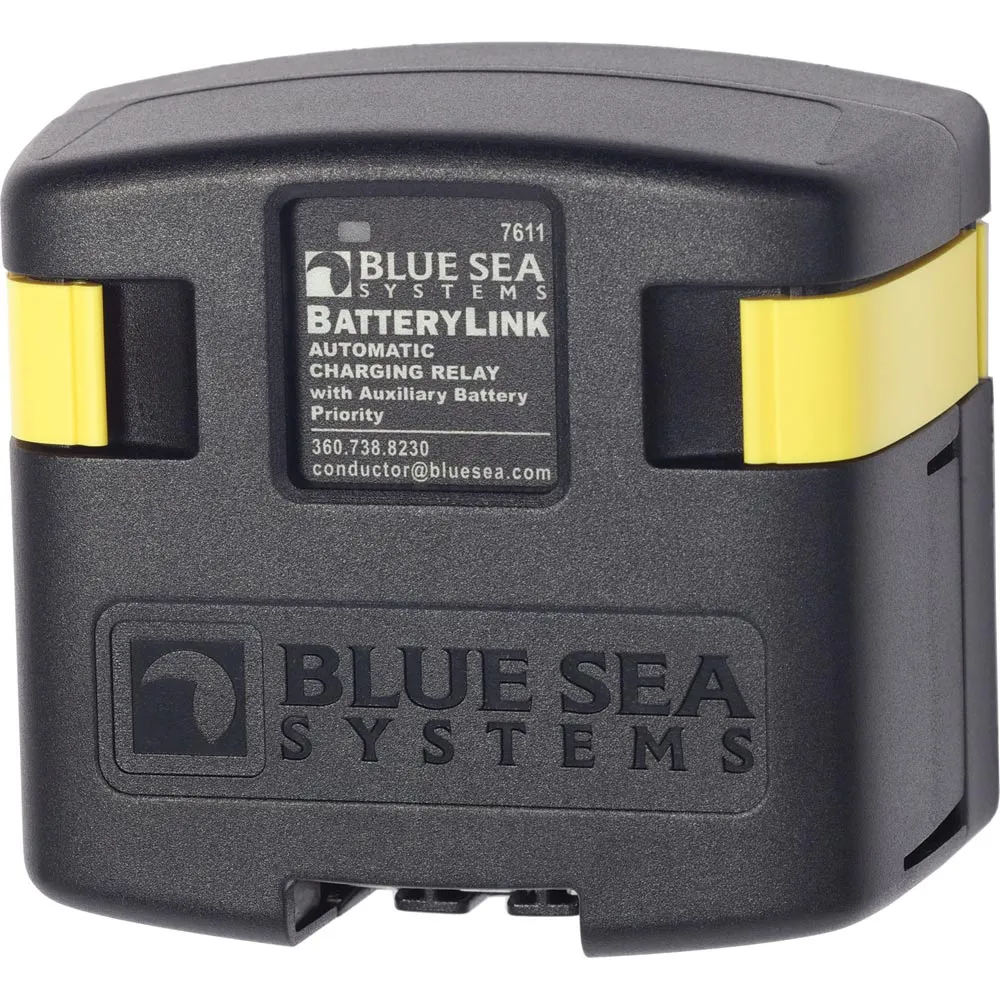

7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging

Features:

• 120 Amp continuous rating

• 12/24V DC auto ranging voltage input

• Senses charging on two battery banks

• Side and bottom knockouts for cable connections

• Clip-on cover insulates terminal connections

• 7/8" (22 mm) stud length to accept multiple cable terminals

• Integrated LED indicates ACR status

• 1/4" x .032" male quick connect terminals for ground and optional features

• Intermittent Rating: 5 min.: 210 Amps

• Continuous Rating: 120 Amps

• Nominal Voltage: 12/24 Volts DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Continuous Amperage: 120a
• Box Dimensions: 4"H x 7"W x 9"L WT: 1.25 lbs
• UPC: 632085076115
